Thermaround™ Is the Round Outdoor Duct Solution for Exterior Applications
The HVAC Industry does not exist on rectangular alone. For applications that require a round or spiral solution for rooftop ductwork, we've developed a pre-insulated solution that offers the same great benefits of Thermaduct with a new, efficient shape. Strong draw band connections allow this round solution to install fast and easy. Our patent pending process allows for a continuous cladded surface with as little as one solvent welded seam!
Offering the same great vinyl cladded protection as rectangular Thermaduct, Thermaround is an excellent lightweight solution for the outdoor elements. This high R-value system offers an R-12 insulated value and extremely low air leakage. Thermaround uses same UV stable 1000 micron vinyl cladding for a durable solution that will naturally shed water. In the interior, air passes over a smooth aluminum surface free from loose fibers to give your building better IAQ performance.
Features:
- Patented Product
- R12 Insulated Value
- 10" Positive, 8" Negative Pressure Class
- UL 181 Listed InspiralR Interior
- 1000 Micron UV Stable Vinyl Cladding
- High Static Pressure Design
- Lightweight Duct System
- Gored Elbows - No Need for Turning Vanes
- Low Air Leakage
- Simple Connection System for Easy Installation
Factory Laminated & Virtually Seamless Vinyl Cladding
With a continuous cladded surface, Thermaround truly eliminates areas for water intrusion. Our 1000 micron, UV stable vinyl cladding is factory applied to our closed cell insulation with a full lamination process for a permanent bond. This strong barrier keeps outdoor elements out and conditioned air in to ensure high efficiency air distribution.
Duct sections are designed to have as few as one solvent welded seam for an uncompromising protective surface that requires no field installation of cladding.

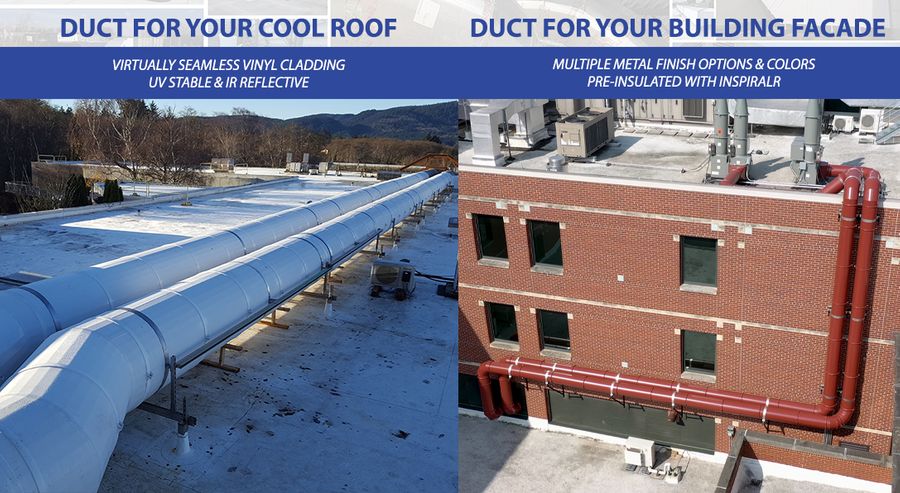

Outdoor Efficiency - Designed with Architects in Mind
Whether your application is looking for “cool roof” efficiency or just “cool” colors, Thermaround is now available with an optional Kynar finish metal exterior. This opens up more opportunities for architectural application where the look of your ductwork play a key role in building design, while still allowing for the pre-insulated quality of Thermaround.
Near Zero Air Leakage
Energy Efficient Air Distribution Perfect for Exterior Applications
Preinsulated System
Thermaround provides an R12 insulated value without the need for additional duct insulation
Ease of Installation
With Thermaround's lightweight duct and fast connection system allow you to install more outdoor duct per day
10 Year Limited Warranty
Thermaround is backed by a 10 year limited warranty
Pair Easily with Thermaduct Outdoor Rectangular Ductwork
Thermaduct and Thermaround both provide a factory laminated surface with a minimal areas of water intrusion. Applications that require both round and rectangular ductwork will find no better exterior ductwork solution than our outdoor products.
Both products install easily and provide near zero air leakage. Our patent pending Thermaround system requires installing contractors to apply sealant, connect sections together with an offset coupling and use a draw band connection for fast and easy installation.
Thermaduct and Thermaround truly are Outdoor Duct Solved!
See Thermaround In Action
Thermaround Installation Instructions - Connections
Thermaround Exterior Ductwork at Medical Production Facility - Virtually Seamless Spiral Alternative
Thermaround Corrosion Resistant Rooftop Ductwork - Coastal Hospital Pre-Insulated Outdoor Duct
Thermaround Healthcare Outdoor Seamless Spiral Duct Alternative
Thermaround Hospital Outdoor Round Ductwork Oregon

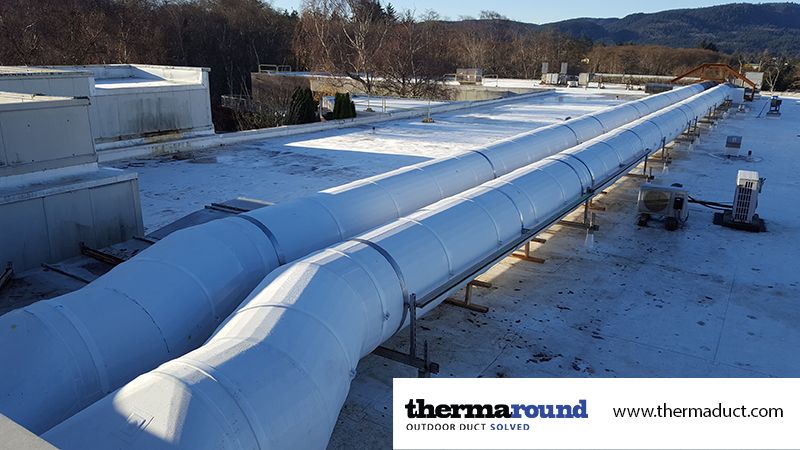

Thermaround Doublewall Outdoor Spiral Alternative
Thermaduct Round Rectangular Outdoor Ductwork
Thermaround Outdoor Hospital Ductwork
Thermaround Outdoor Round Ductwork prefab
Thermaround Preinsulated Round Elbow
Product Literature
Download the latest literature in PDF Format
Thermaround Outdoor Pre-Insulated Phenolic Ductwork
Thermaround uses a smooth aluminum Kingspan KoolDuct interior for a high quality, fiber free insulation that is protected by our 1000 Micron vinyl cladding. Because of this, our round outdoor duct system is great for almost any application.
Hospitals and Healthcare Environments
Schools and Universities
Hotels and Multifamily Structures
Commercial and Industrial Applications
Pools and Natatoriums
